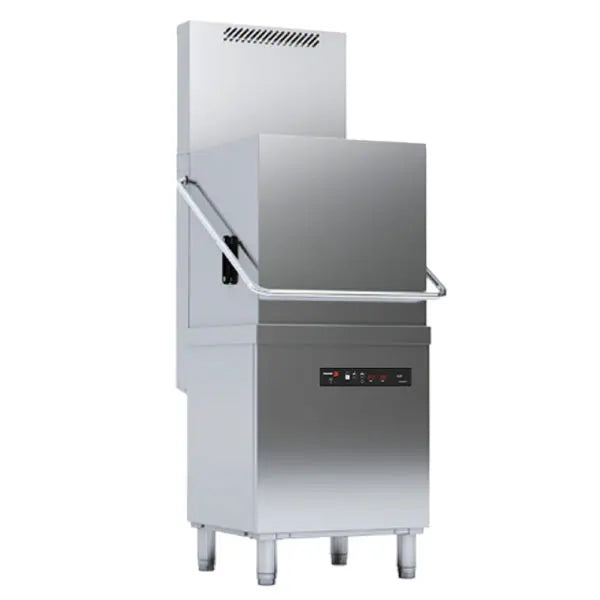

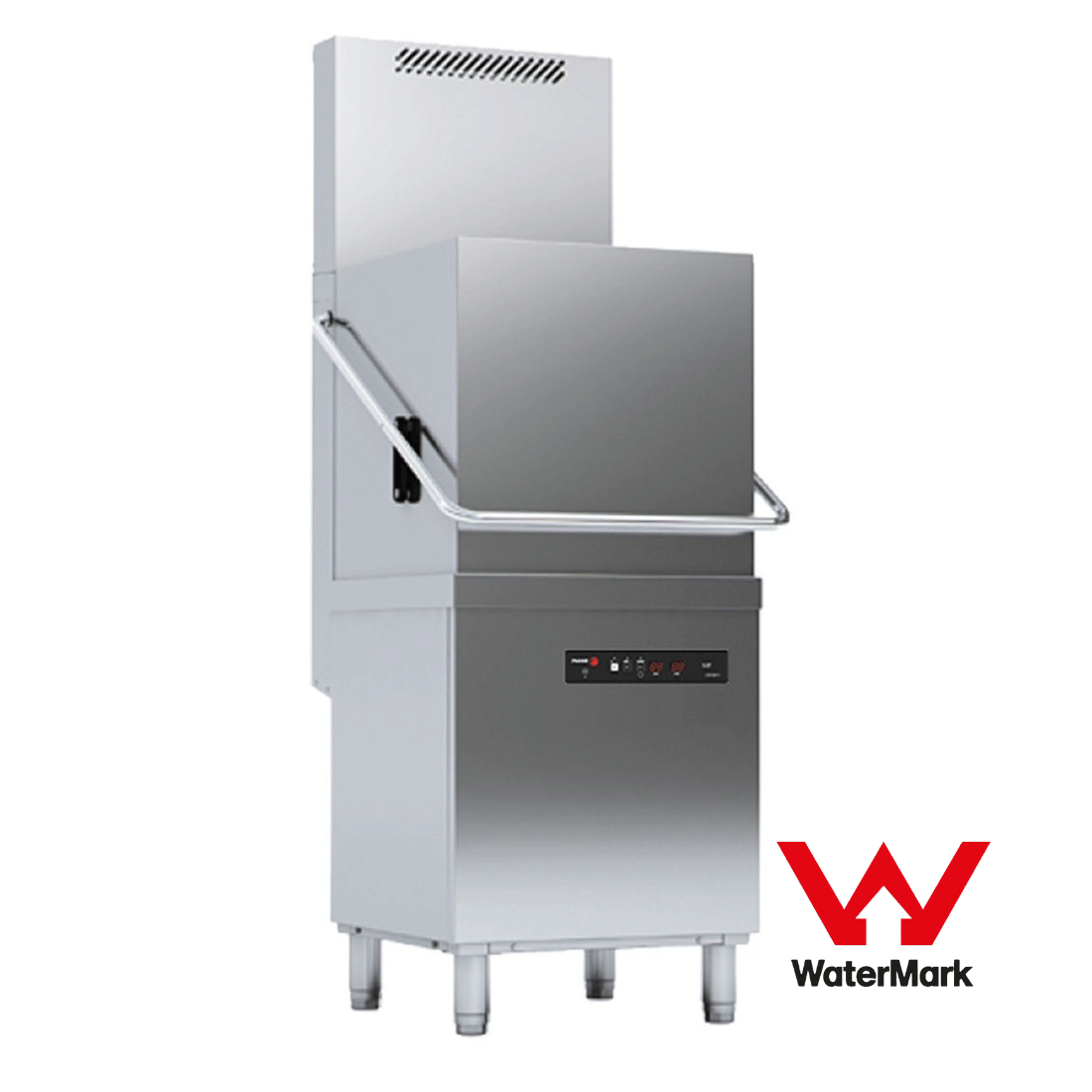

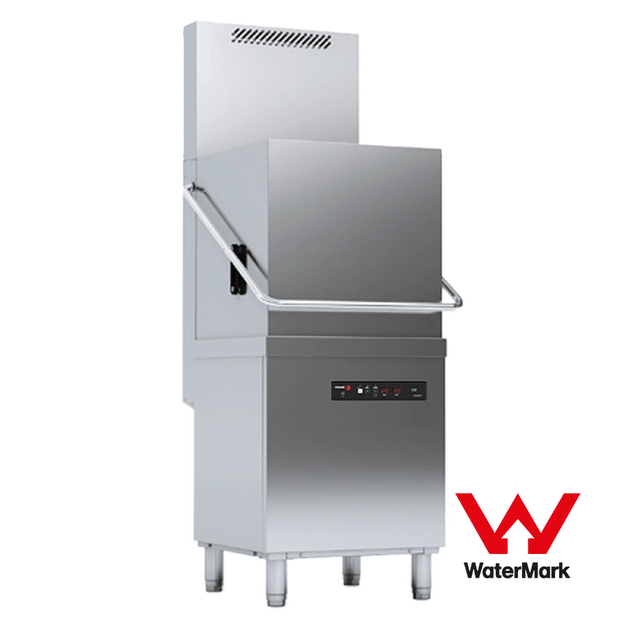

Efficiently clean and sanitize dishes with the FAGOR EVO-CONCEPT PASS-THROUGH DISHWASHER. This commercial-grade dishwasher offers a sleek and functional design with advanced features such as a pass-through system for seamless operation. Save time and water with the CO-142HRSBDD model.
产品信息
EVO-CONCEPT pass-through dishwasher with drain pump and detergent dispenser
Hourly production: 60 baskets/hour – 720 dishes/hour
Clearance (max ware height): 440mm
Wash cycles: 55-75-120 seconds
Double rotating wash and rinse systems, made of AISI-304 stainless steel
Water consumption: 2.4 litres/rinse
Safety magnetic switch for hood opening
Adjustable legs
Supplied with 1 base basket; 1 plate basket and 2 cutlery containers
WaterMark approved
Key Features
Hood-type dishwashers with heat recovery system
EVO Generation
Constructed in stainless steel.
Counterbalanced hood with handle and spring system.
Stainless steel double rotating wash and rinse system, top and bottom.
440 mm hood opening (suitable for GN 1/1 trays).
Continuous wash cycle.
High water flow wash pump
Rounded tank to facilitate washing and drainage.
Stainless steel armored heating elements in the wash tank and rinse boiler.
(Optional) Multi-voltage: Allows the machine to be connected to a single-phase or three-phase voltage network.
AISI-304 stainless steel filter trays in the wash tank.
Thermostatic controlled temperatures (wash, 60°C, and rinse, 90°C).
Thermal stop system which guarantees a rinse temperature of 85°C.
Safety stop switch in hood opening.
Safety thermostat – Machine with control panel and electronic control
55”, 75” and 120” wash cycles.
Theoretical maximum production of 65 baskets/hour (1170 plates/h).
2.4 litre water consumption per cycle.
Rinse with a thermostat system.
Standard factory setting disabled. Easy to enable.
Alternating or simultaneous tank and boiler heating.
IPX4 anti-humidity protection.
Energy recovery device
Drainage pump
Tank emptying program.
Peristaltic detergent doser.
Equipment included: One base basket, one basket for plates and two cutlery holder
