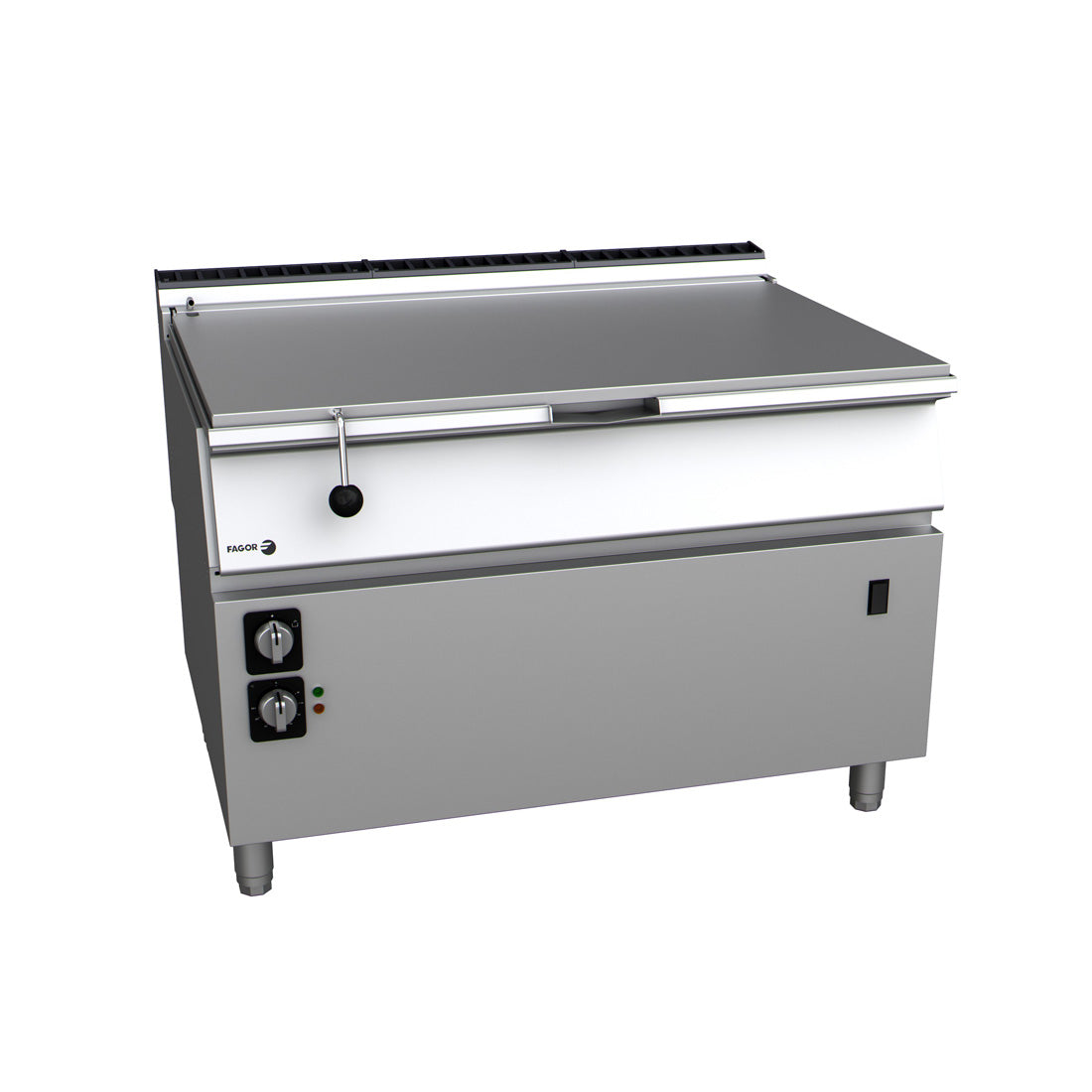

Fagor Kore 900 Series Electric 120L Bratt Pan (SB-E915IM)

Description

Fagor Kore 900 Series Electric 120L Bratt Pan (SB-E915IM).

Key features

• Motorized raising system
• Stainless steel tank
• Capacity: 120L
• Surface: 1130mm x 616mm
• Tilting Bratt pans are so versatile devices that when fitted with the right accessory (tilting pan, thermostat, filling tap...) they can be considered as four in one machine.
• They can be used
• as a fryer, to fry small-size products.
• as a fry-top, to grill or "dry heat cook".
• as a boiling pan, for wet cooking.
• to Bain Marie, keeping a minimum temperature.
• Laser cut and automatic welding for a perfect adjustment of sides between modules with a square-angle finish.
• Stainless steel pan, particularly suitable for delicate cooking.
• Very thick container bottom (10 mm) to ensure even heat distribution.
• Pans' minimum edge radio is 3.5 mm for better hygiene.
• Wide discharge opening for easy cooking and cleaning operations.
• The pan is made according to EN-202-3 standard for materials in contact with food.
• Electric heating using shielded stainless steel electrical resistances at the pan bottom.
• The pan's thick bottom ensures an even distribution of heat and an even cooking of food.
• Range of temperature between 100 and 310 °C controlled by thermostat.
• Fitted with a safety thermostat.
• Automatic heating shuts off when the container is tilted.
• The pan can be filled by an electro valve operated by a switch at the front panel. The filling tap is located at the back of the machine.
• The lid is double-lined, with a back drain to redirect condensation water into the pan.
• Lid-balancing springs. Front access cover handle.
• Automatic tilting system. The pan can tilt 90 º, for a total emptying
• Water-tight and protecting-support controls.
• High-temperature protector for the chimney made of enameled cast iron.
• Front access to components.
• According to European standards for components and panels temperature, efficiencies and combustion, and sanitary regulations (EN-60335 and EN-203)
• IPX5 grade water protection equipment
• Maximum power: 22.5 kW
• Dimensions: 1.200 x 930 x 850 mm

Specifications

Warranty

2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
